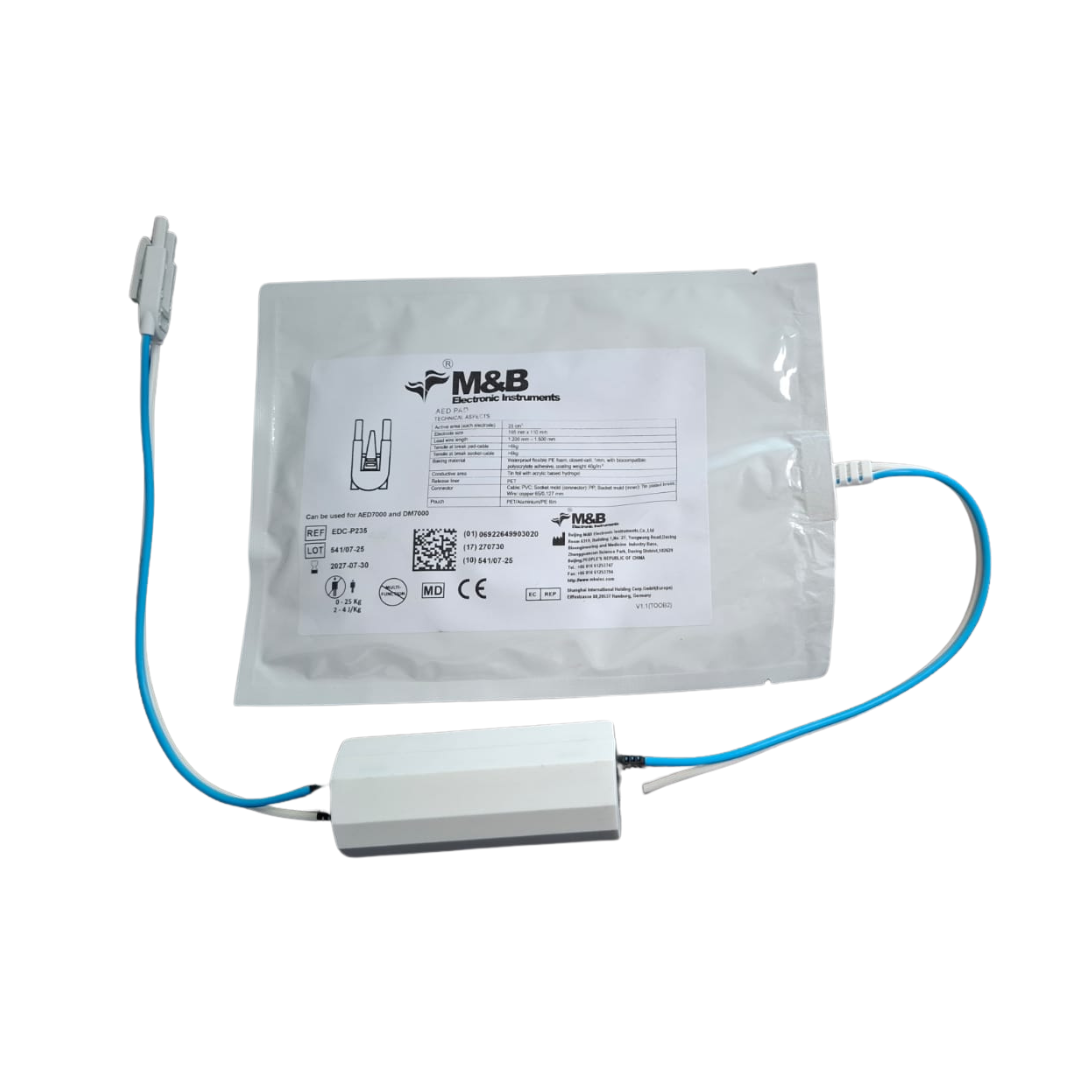

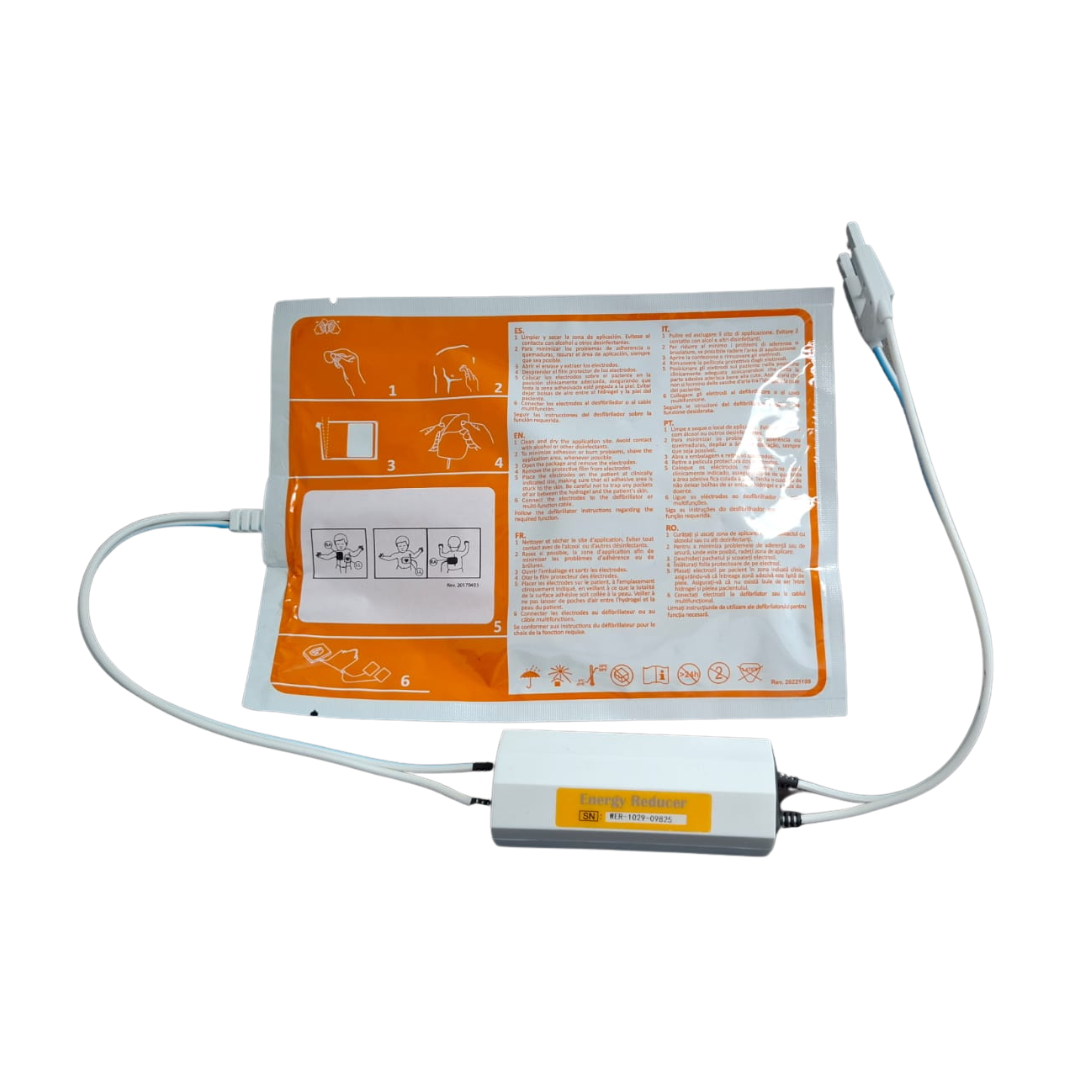

AED Pad (Child)

The AED Pad (Child) is a high-quality, pre-gelled electrode pad designed for reliable performance during sudden cardiac arrest emergencies. Manufactured with durable, biocompatible materials, these pads ensure excellent skin adhesion, optimal conductivity, and consistent shock delivery when used with Automated External Defibrillators. *This AED Pad (Child) is suitable for use on the AED7000 and DM7000.*

Technical Aspects:

• Active area (each electrode): 25 cm²
• Electrode size: 105 mm × 110 mm
• Lead wire length: 1200 mm – 1500 mm
• Tensile at break (pad-cable): 6 kg
• Tensile at break (socket-cable): 6kg
• Backing material: Waterproof flexible PE foam, closed-cell, 1 mm, with biocompatible polyacrylate adhesive. Coating weight: 40 g/m²
• Conductive area: Tin foil with acrylic-based hydrogel
• Release liner: PET

Connector Specifications:

• Cable: PVC
• Socket mold (connector): PP
• Socket mold (inner): Tin-plated brass
• Wire: Copper 65/0.127 mm
• Pouch: PET/Aluminium/PE Film

Whether for replacement, training readiness, or compliance with safety regulations, these adult AED pads are essential to ensuring your defibrillator is always rescue-ready.
