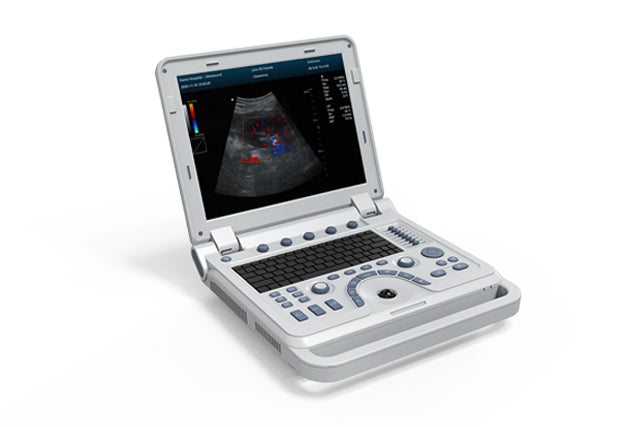

Contec CMS600P2 Plus B Ultrasound

Description:

CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts embedded operating system, which greatly optimizes the product performance. The system is taken more conveniently for its high effective data processing ability, pop-up menu and keyboard design. It includes rich measuring software packages that satisfy the clinic diagnostic need fully.

Main Features:

• The device which adopts linux embedded operating system, has well compatibility, transplantable character, and flexible expansibility.
• It adopts advanced full digital beam-forming, real time dynamic aperture, real time dynamic receiving apodization, real time dynamic receive focusing, frame correlation, modern image processing technology etc., which improves image quality.
• The system can be taken conveniently for notebook type, built-in battery, high integration of unit, small volume, light weight.
• It adopts touch type folding keyboard, flexible and shortcut trackball operation, which greatly quicken the test speed.
• Neat and convenient image managing function which can print and export report.
• It includes rich measuring software packages: obstetrics, gynaecology, cardiology, urology, small parts. Many probes can be chosen, and wide application can satisfy the clinic diagnostic need fully.
• Near gain, far gain and total gain can be adjustable alone.
• Possess external memory function.
• Can be connected to the video printer, inkjet printer, laser – jet printer.

Main Performance:

• Display mode:B,2B,4B,B/M,M
• Image grey scale:256
• Monitor:10.1 inch TFT LCD
• Display resolution :1024*600
• Lateral resolution:2 mm (near field) 4 mm (far field)
• Axial resolution:2 mm (near field) 2 mm (far field)
• Dead zone:≤3 mm
• Display depth:≤240 mm
• Horizontal geometric position precision:≤5%
• Vertical l geometric position precision:≤5%
• Zoom:0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0
• Cine loop:600 frames
• Image storage:2048 frames
• Body mark:43
• Focus: The number and position can be adjustable.
• Assistant tool: Puncture guide and histogram
• Obstetrics, gynaecology, cardiology, small parts, urology etc. can generate reports automatically.
• Measurement: Distance, circumference, area, volume, angle, ratio, slope etc.
• Support Chinese, English language interface display and input.
• The management interface menu, Chinese and English operating systems, image processing default and a key function of optimization.
• Measurement formula can be set up differently according to the different race.
• Comment: Date, time, name, hospital, number, frame rate, depth, gain, dynamic range, frame correlation, frequency etc.
• Image processing: Controllable frame correlation, gamma correction, histogram
• Image conversion: Up and down, left and right, black and white
• Tissue harmonic imaging
• Screen comments function in both Chinese and English
• Support USB storage
• Update software though USB
• Interface: USB, Video, VGA

Standard Configuration:

• 3.5MHz convex probe, 2.0MHz~5.0MHz Applications: Abdominal organs examination
• 7.5MHz linear probe, 5.0MHz~10.0MHz
• Applications: Small part examination

Physical Identity:

• Dimension:370mm(L) x 360mm (W) x 80mm (H)
• Weight: 6.5kg (include probe)

Lead Time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
