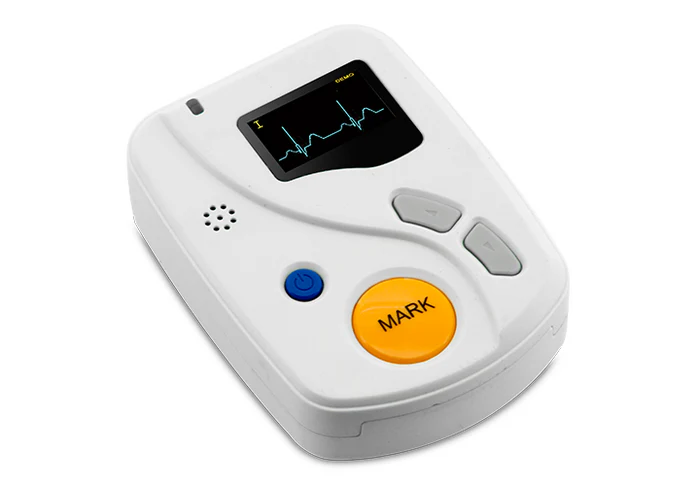

Contec Holter ECG TLC6000

Contec Holter ECG TLC6000

Features:

• Adopt 12-lead system of international standard, continuously record ECG waveform up to 48-hour.
• Sync analysis for 12-lead, and any channels can be selected as the main analysis channel, which ensures that QRS waveform can be found accurately, and no distortion.
• With more than 10 templates(such as atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and many user-defined modules, which can almost distinguish any kind of pathologic waveforms.
• Flexible atrial fibrillation analysis, which ensures that physicians can use the whole or segmented AUTO/manual analysis, more accurate in atrial fibrillation analysis.
• All pacemakers(such as AAI, VVI, DDD etc.) can be analyzed by the powerful pacemaker analysis function.
• Single or full-lead ECG in any time bucket can be reviewed by the fast review analysis function.
• With analysis functions for 5-minute, 1-hour and whole heart rate variability.
• One-key print, convenient and fast to print the reports.
• The death risk in patients with myocardial infarction can be predicted by the “HRT” analysis function.
• “T-Wave alternation” is an important index to predict the malignant arrhythmia and sudden cardiac death.
• With QTD(QT dispersion), VCG(vector cardiogram), VLP(ventricular late potential) and TVCG(time vector cardiogram) analysis modules, more valuable in analysis report.

Performance:

• Lead: standard 12-lead
• Power supply: one “AAA” battery
• Calibration voltage: 1mV±5%
• Noise level: ≤30µV p-p
• CMRR: ≥60dB
• Frequency response: 10Hz as benchmark, 0.5Hz~55Hz: -3dB
• Low-frequency characteristics: ≥3.2s
• Scan speed: 25mm/s±5%
• Polarizing voltage: ±300mV, sensitivity: ≤±10%
• Minimum measure signal: 50 µV p-p

Accessories:

• Lead cable (1 set)
• ECG electrode (1 bag)
• USB cable(1)
• Bag(1)
• User manual(1)

Specifications:

• Recorder dimension: 80.5mm(L) × 59.5mm(W) × 22mm(H)
• Weight: about 61.5g(without batteries)
