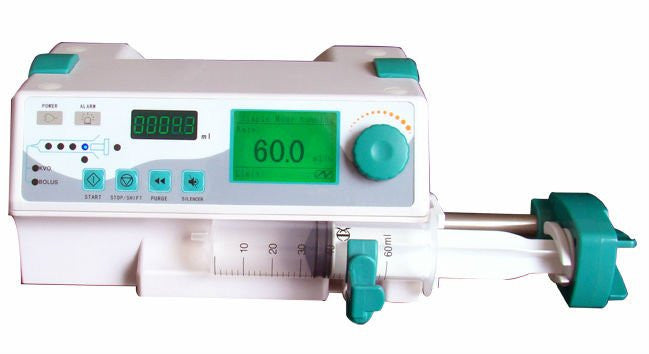

Syringe Pump – Stackable

Features & Functions:

1. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions.
2. Stackable to be the maximum 8 channels.
3. Transfer the message between the Nurse-call System and the pumps.
4. Three working modes: rate mode, time-volume mode, dosage-weight mode.
5. Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
6. Automatic calibration and compatible with any brand syringes.
7. Large LCD screen displays working status.
8. KVO and Bolus functions.

Technical parameters:
Unique Voice Alarm system The device triggered the voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.

Flow rate
50ml syringe:0.1~1500ml/h;
30ml syringe:0.1~900.0ml/h;
20ml syringe:0.1~600.0ml/h;
10ml syringe:0.1~300.0ml/h

The range of limiting volume
0~999.9ml

The range of injected volume
0~9999.9ml

Accuracy of flow rate
Within ±3%

Purge rate
Purge rate of 50ml syringe:1500ml/h;
Purge rate of 30ml syringe:900.0ml/h;
Purge rate of 20ml syringe:600.0ml/h;
Purge rate of 10ml syringe:300.0ml/h

Alarm and warms
The pump can give out alarming when injection is finish, injection finishing, injection of limited amount finished, injection is blocked, syringe falls off, syringe is improperly installed, setting error, AC power has been pulled out, low battery and so on.

KVO rate
1ml/h

Fuse specification
F1AL/250V ,two fuses(installed inside pump)

Operating power
AC100~240.0V, 50/60Hz, Power:≤30VA
Internal rechargeable battery: DC 11.1V,capacity≥1600mAh.
The device could work constantly more than 4 hour at medium speed running mode,after the battery charged for 10 hours.

Operating environment
temperature:+5~+40°C, relative humidity:20~90%

Storing environment
temperature:-30°C~+55, relative humidity:≤95%, ( No condensation state )

Atmospheric pressure
860hPa~1060hPa

Safety level
Class II with insulated enclosure, internal power supply, BF-type continuous normal running equipment.

IP grade
IPX1

Dimensions
280(L)×210(W)×130(H)(mm)

Weight
2.2kg

Quality CE certification
