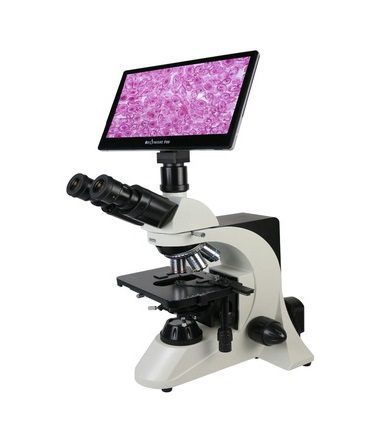

XSZ- Digital video Infinity biological trinocular lab microscope

XSZ- Digital video Infinity biological trinocular lab microscope

Product Description

XSZ-700 Series Infinity Biological Microscope

★ CCIS Infinity Chromatic Aberration Revise System, High resolution image.

★ Improve in optical capability, wide-field, better image quality.

★ Main body of “Y” style design, stable & reliable whole structure.

★ Humanized configuration design, lower draw operation, makes the user more comfortable.

★ Knocked-down type and double layers mechanical stage

★ Abundant accessories structure to ensure the use of different users

Technical Specification :

Specification
Model	XSZ-702	XSZ-703
Optical System	CCIS Infinite Aberration Correction Optical System, High-resolution Image
Viewing Body	30°Incline Compensation Free Binocular Body, Interpupillary Adjustable Distance: 50～75mm	●
30°Incline Compensation Free Trinocular Body, Interpupillary Adjustable Distance: 50～75mm	●
Eyepiece	WF10X(Viewing Field Diameter: ø25mm)
Infinity Plan Achromatic Objectives	4×∞/NA 0.1，10×∞/NA 0.25，20×∞/NA 0.50，40×(s) ∞/NA 0.65，100×(s, oil) ∞/NA.1.25
Mechanical Stage	Knocked-down type and double-plate mechanical stage，Size:185mm×145mm，Moving Range:75(X)mm×50(Y)mm，Precision: 0.1mm
Nosepiece	Inflexed Nosepiece of Quintuple Holes
Focusing Unit	Coaxial coarse/fine focusing system，focusing range:25mm，Division of Fine Focus Adjustment:0.002mm
Condenser	Swing type Condenser:N.A.1.2/0.22
Illumination	Transmitted Kohler Illumination, 6V 30W Halogen Lamp, with Adjustable Brightness，Free Voltage 100V～240V，Blue Filter(optional LED lamp, halogen lamp double light source)

Optional Accessories

Phase contrast Device	Rotary phase contrast device （10X、40X、100X Infinity phase contrast Objectives）Alignment telescope
DarkField Device	Dark Field Condenser（Dry Dark Field Condenser，N.A.0.9; Immersion Dark Field Condenser, N.A.1.25.）
Polarizing device	Analyzer.polarizer
Digital camera device	Can be equipped with 5 million, 15 million pixel digital camera device and a variety of high-definition HDMI professional camera device
Digital photographic device	Can be equipped with CANON , NIKON and other digital SLR cameras, but also optional SZ-3 universal Camera Adapter

Feature

1. Direct Output to HDMI Screen, No Need the PC!

2. Mouse Control Camera, Connect with Wifi Mouse via USB Interface

Feature

1. Complete Application Functions, Not Only Camera, Also Tablet PC!

2. 5 Megapixel Color Camera

3. 9.7inch 1024×768 IPS Color LCD Touchscreen, Can be Operated by USB Keyboard and Mouse

4. Build-in Android 4.2 Operating System, RK3066; Dual-core 1.5GHz CPU

5. Support External SD Memory Card

6. Multiple Interfaces, USB, SD Memory Card, HDMI Output can Connect with Monitor or Projector Screen

7. WI-FI and Bluetooth Ready

8. Build-in Microscopy Software for Capture/Record Images and Measurement

9. Professional Particle Analysis Software

10. Measure Data Can be Export to Excel File

11. Standard C-mount Interface.

Parameter
Hardware	CPU	RK3066 Dual-core 1.5Hz
Display	9.7inch 1024*768 IPS LCD
Storage	RAM 1GB DDR3
ROM 2GB
Support External SD Memory Card, Maximum Capacity Up to 32GB
Camera	1/2.5″ (4:3), 5Mega Pixel Color CMOS Sensor
15fps@1024*768
Housing	Abs+ PC Plastic Housing+ Aluminium Back Case, Metal Stand
Network	WI-FI
Bluetooth
I/O	USB/Mini-USB (OTG), Support USB Keyboard and Mouse
HDMI Output
SD Memory Card Slot
DC5V Power
On/Off Button
Mechanical	LCD Screen 360��@Horizontal/ 90��@Vertical
Software	Operating System	Android 4.2.2
Banding Software	Build-in Microscopy Software (Measuring and Particle Analysis)
Accessories	Standard	Power Adapter
Optional	0.5x Nose Piece with ��23mm, ��30mm and ��30.5mm Adapter Rings for Different Diameter Eyepiece Holders

Build-in Camera
Optical Format	1/2.5-inch (4:3)
Active Image Size	5.70mm(H) *4.28mm(V)
7.13mm (Diagonal)
Active Pixels	2592H*1944
Pixel Size	2.2um *2.2um
Dynamic Range	66.5dB
SNR	40.5dB
A/D Converter	12-bit, On-chip
Sensitivity	0.53V/lux-sec (550nm)
Resolution&Frame Frequency	1280*720@15fps
640*480@30fps
Shutter	Electronic Rolling Shutter (ERS)
White Balance	Auto/Manual
Brightness Control	Auto/Manual
Color	R/G/B Adjustable
Freeze	Support
OSD	UI design, Mouse Control
Edge Enhancement	Support
Cross Cursor	Support, Multi-color, Size Adjustable
Transverse And Vertical Line	4pcs of Transverse Line/Vertical Line, Movable and Size Adjustable
Image Contrast	Support
Wide Dynamic	Support
Measure	Support
Digital Denoiser	Support

Application

1. Biological Teaching Digital Imaging 2. Medical Digital Imaging Microscopy

3. Field Operation Digital Microscopic Imaging 4. Family Natural Science Education

5. Surgical Microscopic Imaging 6. Navigation for Processed Imaging

7. Industrial Optical HD Digital Imaging 8. Astronomical Observation

Build-in Microscopy Software

After the device is turn on, touch the ��YWCamera��Icon to open the camera application

Real-Time Measurement Software.

1��Preview Image �C show live video of the camera.
2��Tool Panel �C Control panels, capture, adjust parameter, measurement, etc.
3��Thumbnail Panel �C Show captured images and videos, touch it to browse the files.
4��System Tool �C toggle thumbnail, rotate, full screen, configure.

II. Particle Analysis Software

Touch the ��YWImage�� icon to open the particle analysis application.

1��Preview Image-show live video of the camera.
2��Tool Panel-Control panels, capture, adjust parameter, measurement, etc.
3��Thumbnail Panel-Show captured images and videos, touch it to browse the files.
4��System Tool-toggle thumbnail, rotate, full screen, configure.
